Death by Dongles

Managing Video Adapter Woes

If you give presentations regularly, chances are you’ve had a video adapter mishap more than once.

Perhaps you worry as you head to a new venue: Does the room have the right video connection for my laptop? How many dongles do I really need to carry around to give my presentation?

With so many devices and so many competing connection standards, can you be sure you’re prepared and have the correct adapter before you present?

We support lots of presentations here at Talon Entertainment Audio Visual, and we have amassed a pretty large collection of video adapters. Here are a few suggestions for making sure you have the correct adapter for the job at every event, as well as some ideas for organizing your adapters, no matter how large your collection may be.

What adapters do I need?

If your computer has both HDMI and VGA built in, you probably don’t need to carry any adapters, as you’ll pretty much find one or both at any venue you visit. That said, most new macs and many smaller PC laptops, ultrabooks and tablets will need an adapter - they use smaller connectors to save space. You’ll encounter USB-C and Mini DisplayPort the most these days (USB-C has become a fairly common standard, certainly by 2019 we’ve been seeing it on a broad swath of computers) but we still see Mini DisplayPort, Full Size DisplayPort, and Mini and Micro HDMI a fair bit.

If your computer has built-in HDMI, you might consider adding an HDMI-to-VGA adapter to your laptop bag. I know it seems VGA is on its last legs, but we still encounter it a lot, particularly in smaller conference breakouts or older venues. We’ve had good luck with this one from Cable Matters, which has an audio output and the ability to get power over USB if your HDMI port doesn’t supply enough power. Hopefully as 2020 approaches we’ll see VGA less and less, but we always have a couple of VGA adapters, because it shows up.

USB-C to HDMI Adapter

USB-C to HDMI Adapter

Many new laptops have USB-C. Make sure when you buy an adapter that it supports your specific computer make and model. Different hardware makers implement the standard slightly differently (The same connector can be used for USB, Thunderbolt, and DisplayPort signals, so you have to make sure your computer and the adapter can communicate in the same language.) I’ve had good luck with this model for VGA and this model for HDMI.

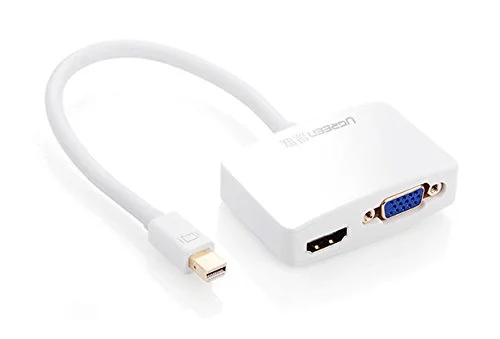

Mini Display Port Combination Adapter - VGA and HDMI

Mini Display Port Combination Adapter - VGA and HDMI

If you have Mini Display Port on your computer, you probably want to get adapters to both HDMI and VGA. Some manufacturers make combo adapters that have both HDMI and VGA out. Keep in mind that you can only use one of the outputs at a time (either VGA or HDMI but not both at once), but it still saves carrying two separate adapters - I like this one, and have carried it with my 13” Macbook Pro for a few years.

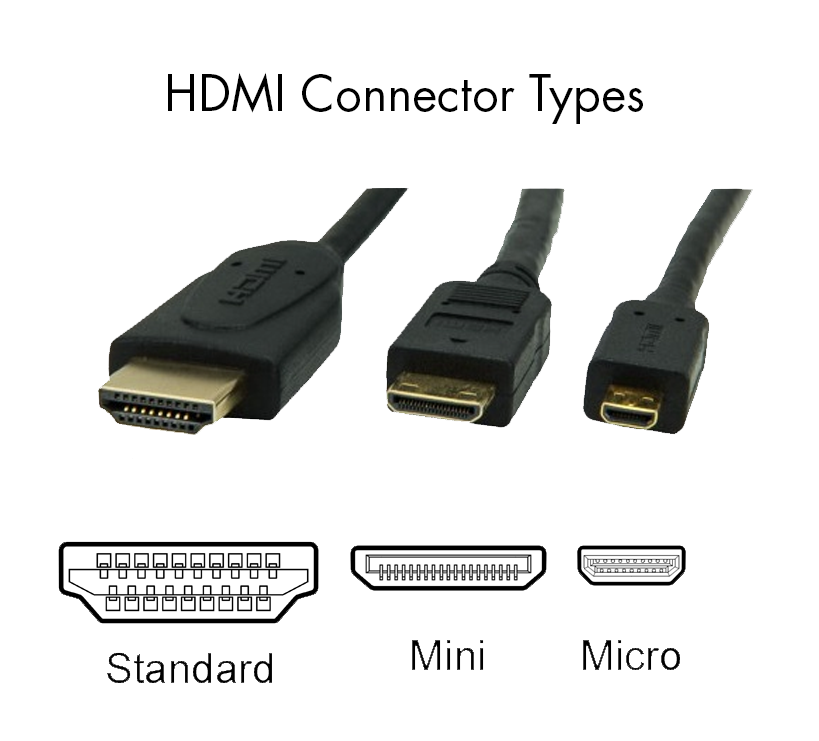

HDMI Connector Types

HDMI Connector Types

If you have an ultrabook or tablet, you might have Mini HDMI or Micro HDMI. If you have those, make sure you carry an adapter - these are not super common and venues might not have the correct adapter on site.

For Mini or Micro HDMI connectors, you can get an adapter that has a short cable between the Mini HDMI and the full-sized HDMI ports, like this for Mini HDMI and this for Micro HDMI, or you can get a one-piece adapter like this. Either way, be very careful that the HDMI cable and adapter combination are supported from below—do not put strain on you computer or tablet’s Mini or Micro HDMI port—these connections are very delicate, and you don’t want to damage your device with a heavy cable pulling on the port

Where do I keep my adapters?

At Talon AV, we have so many adapters that we keep them in a large clear tackle box, but likely you don’t need to carry that many on a daily basis.

For a daily carry, I like to use zipper bank deposit bags like this. They are small enough to fit easily in a laptop bag or backpack, but easily hold several video adapters, USB Cables, and a phone charger or two. I carry one in my backpack with all my most-used accessories so that I’m always prepared.

Do you have other ideas for using or storing video adapters? Let us know!
